Product Description:

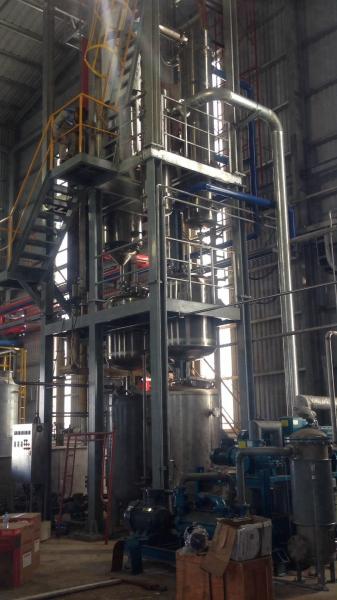

Scraper Thin Film Evaporator
The Scraper Thin Film Evaporator is a highly efficient evaporative
distiller designed for industrial applications. With a vertical
structure, it features a voltage of 380V/220v, an evaporation rate
of 100-1000L/h, and a power range of 1-10KW. It comes equipped with
an evaporative cooler, allowing it to cool and condense the vapor
with a high degree of efficiency. It is also designed with an
evaporative cooler, which helps to reduce humidity levels and
improve energy efficiency. Furthermore, this evaporator is capable
of producing distilled water at a high quality and with minimal
energy consumption, making it an ideal choice for industrial
applications.
Features:
- Scraper Thin Film Evaporator - A Film Evaporation System with a capacity of 0.5-10m2
- Power - 1-10KW
- Weight - 800Kg
- Control Method - PLC
- Evaporative Cooler - A Film Evaporation System which can cool down the temperature of
the liquid being evaporated
Technical Parameter
| Model | GLGB1 | GLGB2 | GLGB4 | GLGB6 | GLGB8 | GLGB10 | GLGB12 | GLGB15 |
| Heat exchange area (m2) | 1 | 2 | 4 | 6 | 8 | 10 | 12 | 15 |
| Steam pressure (Mpa) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Vacuum degree (Kpa) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Evaporation capacity (kg/h) | 150 | 300 | 600 | 900 | 1200 | 1500 | 1800 | 2100 |
| Consumption(kg/h) | 165 | 330 | 850 | 1200 | 1600 | 1800 | 2200 | 2500 |
| Motor power (kw) | 1.5 | 3 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 |
| Rotary speed (rpm) | 130 | 130 | 130 | 85 | 85 | 85 | 63 | 63 |
| Equipment height (mm) | 2600 | 4872 | 5640 | 6406 | 6990 | 7320 | 9460 | 10500 |
Customization:
Thin Film Evaporator
Brand Name: Geling
Model Number: GL-GB-
Place of Origin: Shanghai
Capacity: 0.5-10m2
Material: Stainless Steel 316/304
Structure: Vertical
Weight: 800Kg
Pressure: 0.1-0.9MPa
Geling Thin Film Evaporative Cooler delivers the highest efficiency
in evaporative condensing technology. This film evaporation system
is designed to provide exceptional cooling and maximum energy
savings with minimal maintenance. Its stainless steel 316/304
construction ensures reliable performance and durability. With a
capacity of 0.5-10m2 and a weight of 800Kg, it can operate at a pressure of 0.1-0.9MPa.
It is an ideal choice for those looking for an efficient, reliable,
and cost-effective solution for their cooling needs.
Packing and Shipping:
Packaging and Shipping for Thin Film Evaporator:
The Thin Film Evaporator should be packaged with protective bubble
wrap, stretch wrap, and then placed in a sturdy cardboard box. The
box should be clearly marked with the product name and shipment
destination. The Thin Film Evaporator should be shipped on a pallet
for maximum protection. The pallet should be strapped down securely
and the entire package should be shrink-wrapped for additional
protection.
FAQ:
Thin Film Evaporator FAQ
Q: What brand is the Thin Film Evaporator?
A: The Thin Film Evaporator is Geling brand with Model Number
GL-GB-. It is produced in Shanghai.
Q: What is the purpose of a Thin Film Evaporator?
A: A Thin Film Evaporator is often used to concentrate a liquid or
to separate two liquids.
Q: What materials are used to make the Thin Film Evaporator?
A: The Thin Film Evaporator is usually made of stainless steel, but
it can also be made of other materials such as carbon steel, glass,
or plastic.
Q: What is the capacity of the Thin Film Evaporator?
A: The capacity of the Thin Film Evaporator depends on the model.
Please contact us for more information.
Q: What is the temperature range of the Thin Film Evaporator?
A: The temperature range of the Thin Film Evaporator depends on the
model. Please contact us for more information.
