Product Description:
FC Crystallizer is an industrial crystallizer system for
large-scale production of material crystallization. It features a
forced circulation crystallizer with a power range of 1-50kW, a
stainless steel 316/304 material body, a PLC control system, and
steam and cooling water heating and cooling methods respectively.
FC Crystallizer offers users an effective and reliable means of
producing a wide variety of crystalline materials with accuracy and
speed. Its robust construction ensures a long-lasting and stable
operation, making it the ideal choice for industrial
crystallization needs.
FC Crystallizer is suitable for various types of crystallization
processes such as evaporation crystallization, acidification
crystallization, and thermal crystallization. This industrial
crystallizer system offers excellent temperature control,
high-efficiency operation, and an intuitive user interface.
Additionally, the crystallizer can be integrated with other
industrial systems, giving users the ability to control a wide
variety of parameters. With its high performance and versatile
functions, FC Crystallizer is the perfect crystallizer for
industrial applications.
Features:
- Product Name: FC Crystallizer
- Control System: PLC
- Size: As Capacity
- Voltage: 380V/60Hz Or As Request
- Heating Method: Steam
- Power: 1-50kW
- Keywords: Crystallization Equipment, Industrial Crystallizer, Forced
Circulation Evaporator
Technical Parameters:
| Model | GLWQX-01 | GLWQX-02 | GLWQX-03 | GLWQX-04 |
| water evaporation capacity (t/h) | 0.1-2 | 0.5-10 | 2-20 | 5-50 |
| input concentration (%) | according to material |
| steam pressure (Mpa) | 0.4-0.8 |
| Maximum vacuum (mmhg) | - (0.030-0.090) |
| evaporation temperature (℃) | 45-90 |
| cooling water cost( t/h) | 2-40 | 7.5-150 | 25-250 | 50-500 |
Applications:
The GLFC- Forced Circulation Crystallizer from Geling is a reliable and efficient crystallization equipment, suitable
for the crystallization of different substances. It is designed for
use in a variety of industrial processes, such as chemical,
pharmaceutical, food and beverage, and energy production. Its
high-capacity design, ranging from 100-100000kg/hr, makes it ideal
for large-scale industrial operations. The Forced Circulation
Crystallizer is made of stainless steel 316/304 and operates on a
voltage of 380V/60Hz or as requested. Additionally, it uses cooling
water for cooling and has a high accuracy rate for crystallization,
making it a safe and reliable choice. With its advanced design and
features, GLFC- Forced Circulation Crystallizer is the perfect
choice for your crystallization needs.

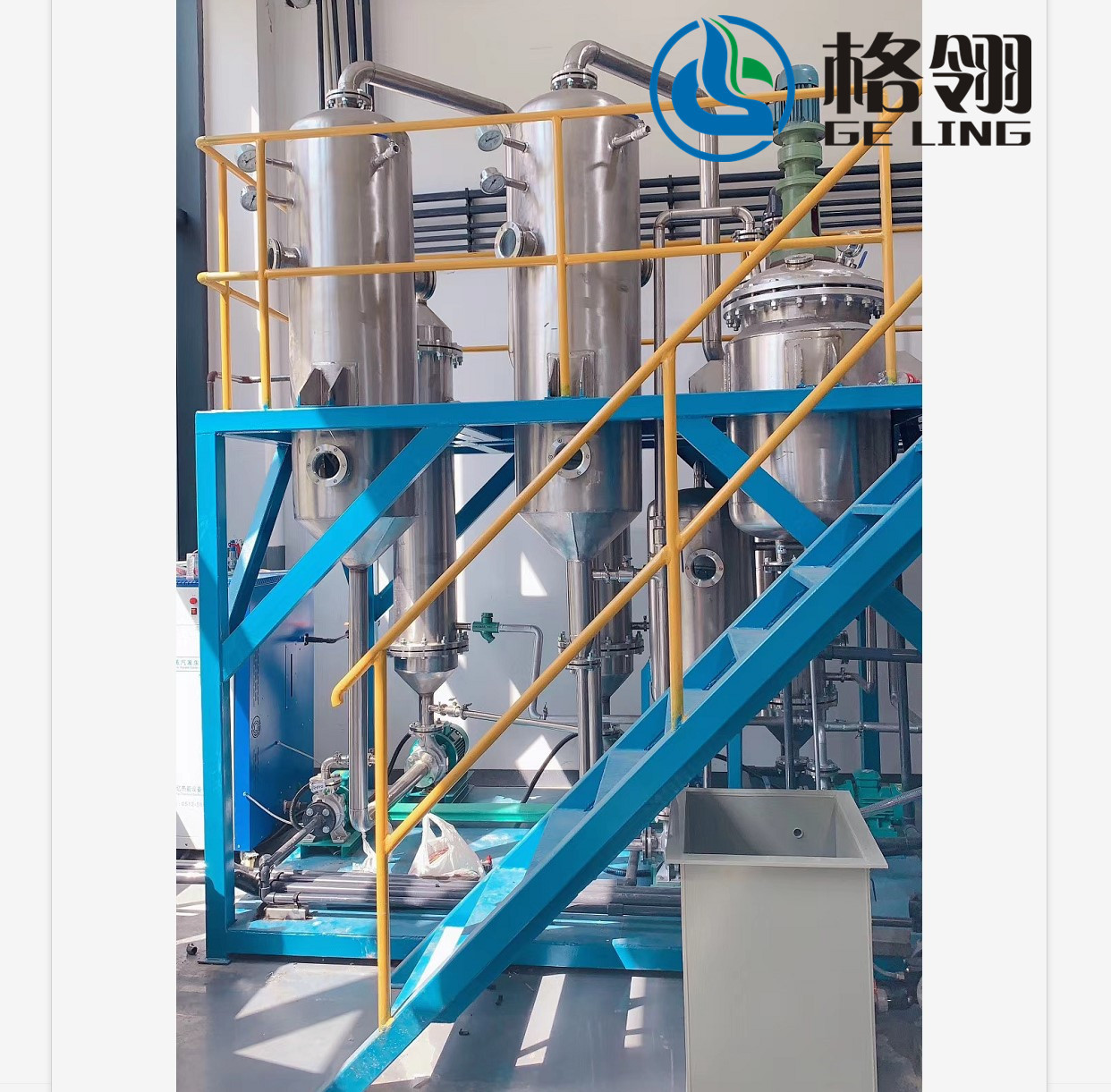

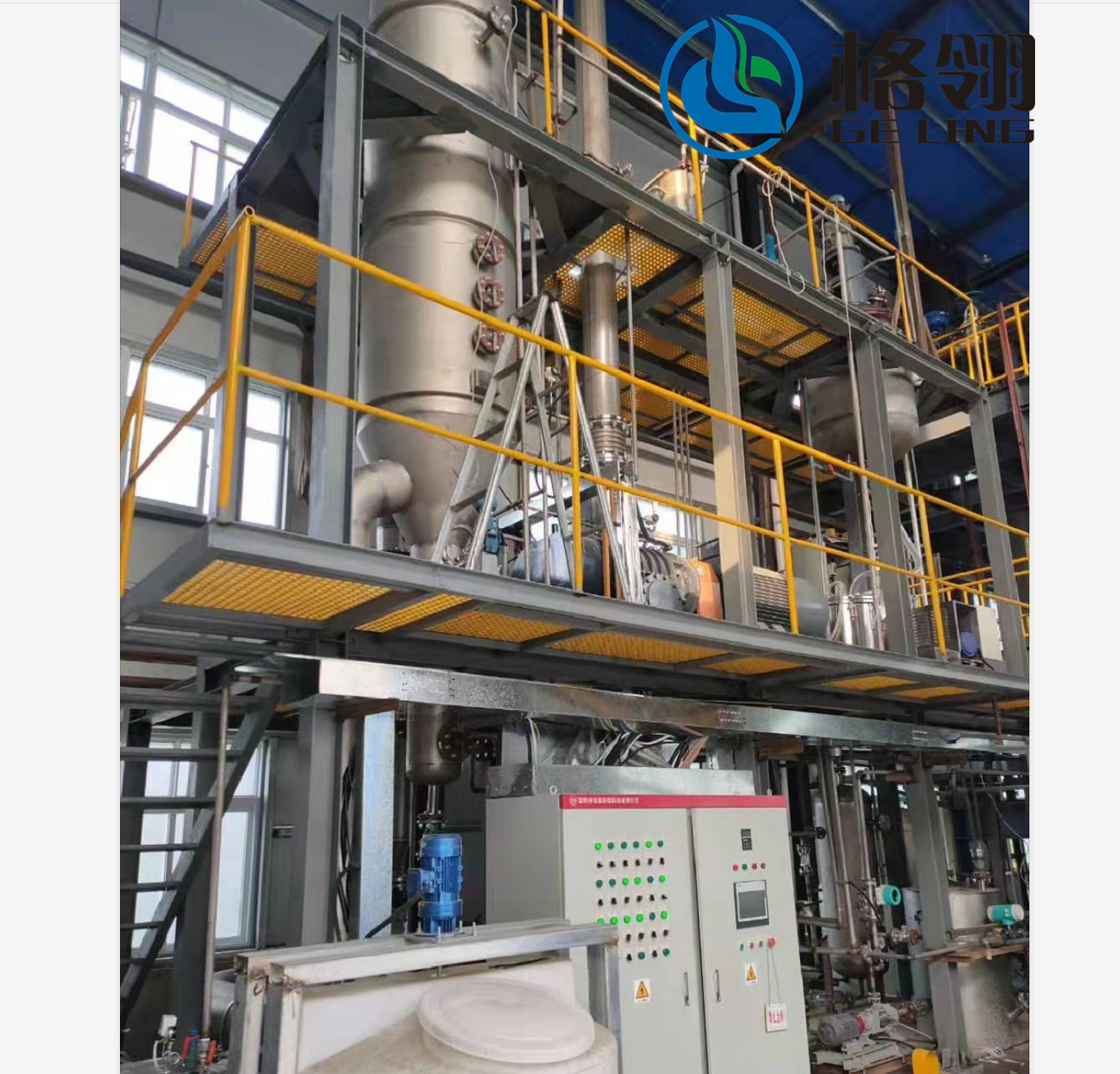

Pictures:
Packing and Shipping:
Packaging and Shipping
FC Crystallizer is packaged and shipped in a sturdy cardboard box
to ensure the product arrives safely and undamaged. The box is
filled with packing materials to protect the product during
transit. All shipments are tracked and insured to guarantee the
delivery.
FAQ:
- Q: What is FC Crystallizer?
A: FC Crystallizer is a product made by Geling, with the model
number GLFC-. It is made in Shanghai. - Q: What are the features of FC Crystallizer?
A: FC Crystallizer has many advanced features, such as superior
quality, durable construction, and easy to use. - Q: What materials is the FC Crystallizer made of?
A: FC Crystallizer is made of premium quality materials, such as
steel, aluminum, and plastic. - Q: What is the size of the FC Crystallizer?
A: The size of the FC Crystallizer varies, depending on the model.
Please refer to the product specifications for more information. - Q: How do I use the FC Crystallizer?
A: Please refer to the user manual for instructions on how to use
the FC Crystallizer.
